Manufacturing capabilities

Ten process families, one tolerance chart. Every parameter below is production-verified, not marketing copy.

PCB Manufacturing Capability

HyperPCB fabricates single-sided through 48-layer boards up to 1000 × 600 mm: 2.5/2.5 mil trace and space standard, 35/35 µm advanced, 0.10 mm drills, 50 µm laser vias, ±7% impedance. Every lot is released with AOI and TDR records.

Learn more

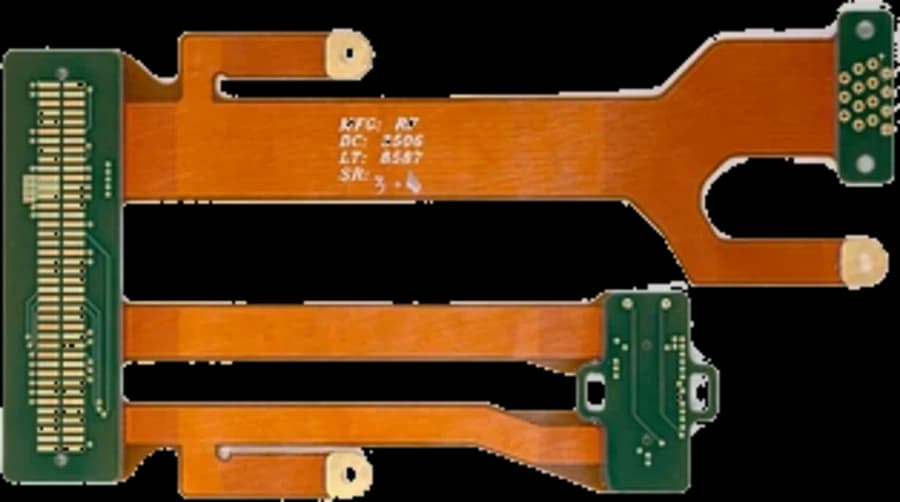

Rigid-Flex PCB Capability

HyperPCB builds rigid-flex PCBs that replace connectors and cable harnesses with one laminated assembly — polyimide flex layers bonded into rigid sections, with controlled impedance, coverlay or solder-mask finishing and stack-up review included.

Learn more

HDI PCB Capability

HyperPCB builds high-density interconnect PCBs from 1+N+1 to 4+N+4 and ELIC, with laser microvias down to 50 µm, 0.10 mm mechanical drills and 1:1 blind via aspect ratio — up to 48 layers with ±7% controlled impedance.

Learn more

Multilayer PCB Capability

HyperPCB manufactures multilayer PCBs up to 48 layers and 1000 × 600 mm, with finished thickness from 0.1 to 12.0 mm, 20:1 through-hole aspect ratio and ±7% controlled impedance, released with 100% AOI on every layer.

Learn more

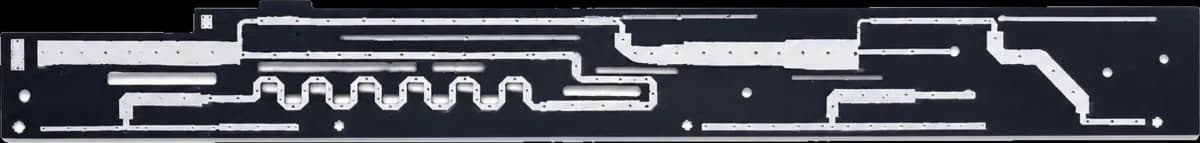

High-Frequency PCB Capability

HyperPCB fabricates high-frequency PCBs on laminates it manufactures itself, covering Dk 2.17 to 10.2 with PTFE, hydrocarbon-ceramic and composite substrates, signal integrity verified to 40 GHz and impedance held to ±7%.

Learn more

High-Speed PCB Capability

HyperPCB manufactures high-speed digital PCBs with ±7% controlled impedance, low-loss and hybrid stack-ups, back-drilled stubs and TDR verification on every controlled-impedance lot — up to 48 layers with 50 µm laser vias.

Learn more

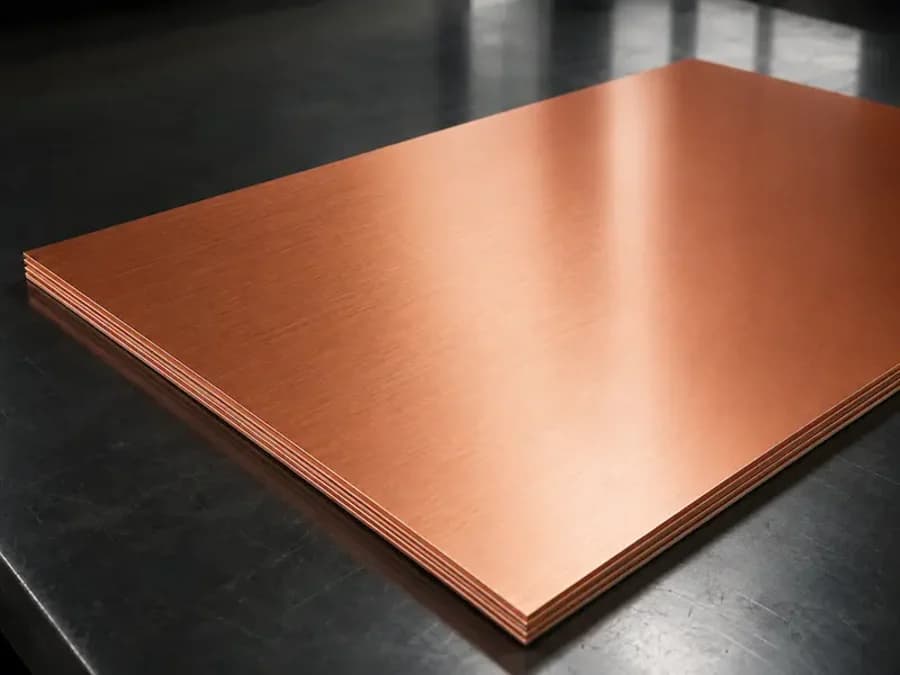

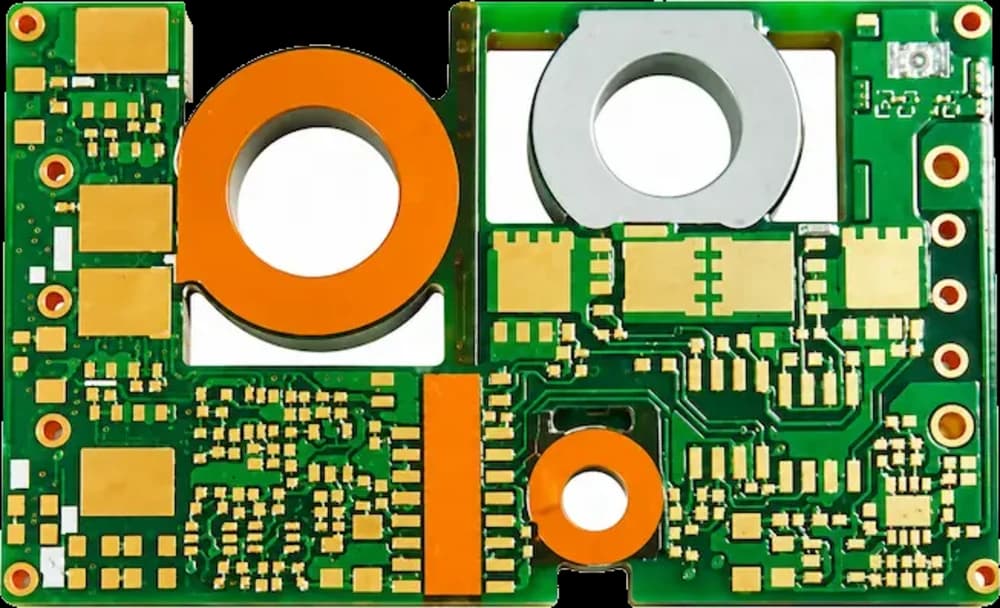

Heavy Copper PCB Capability

HyperPCB manufactures heavy copper PCBs with inner layers up to 12 oz and outer layers up to 14 oz, for power conversion, busbar replacement and thermal spreading — including mixed-weight builds that carry current and signals on one board.

Learn more

PCB Prototype & NPI Capability

HyperPCB builds prototypes in 24 hours express or 2–3 days standard with no minimum order quantity, a free engineer-led DFM review and every laminate family available — on the same lines that will run the production order.

Learn more

PCB Reverse Engineering Capability

HyperPCB reconstructs manufacturing data for legacy or undocumented boards — layer extraction, netlist recovery, stack-up and material identification — and returns a buildable Gerber and drill package with a first article for comparison.

Learn more

Aluminum & Metal Core PCB Capability

HyperPCB manufactures aluminium and copper core PCBs with thermal conductivity from 1.0 to 6.0 W/mK for LED lighting, power conversion and motor drives, in single-sided, double-sided and hybrid constructions.
